ToF Sensors, RGB-D Depth Cameras & VCSEL Modules
Explore DOMI ToF sensors and camera modules, RGB-D depth cameras, VCSEL emitters, and laser products for 3D sensing, AR/VR, warehouse logistics, drone obstacle avoidance, robotics, and industrial applications.
Product catalog
All Products
DM0301
Indoor Range
Up to 4,000 mm
Frame Rate
Up to 50 Hz
Package Size
4.40 × 2.40 × 1.00 mm
Interface
I2C, 0x41, up to 1 Mbit/s
DMS604
Outdoor Range
35 m at 100 klux
Indoor Range
58 m
Frame Rate
50 fps
Field of View
≤1.3°
DMOS5030A/5031A
Resolution
100 × 100
Range
0.2-4.8 m / 0.2-2.5 m
Field of View
30° × 30° / 60° × 60°
Interface
UART / SPI
DM-DTOF2002C0
Working Range
2-120 cm, white card
Field of View
25°
Control Interface
I2C / UART
Package
10 × 8 × 7.6 mm
DMAS2M001
Resolution
40 × 30 at 10 fps
Range
0.2-8 m @ 30 klux
Field of View
60° H × 45° V
Interface
USB-C / FPC
DMOM2508CL
Depth Resolution
320 × 240
Measurement Range
0.2-2 m
Frame Rate
10-30 fps
Data Interface
MIPI CSI-2, 2 lanes

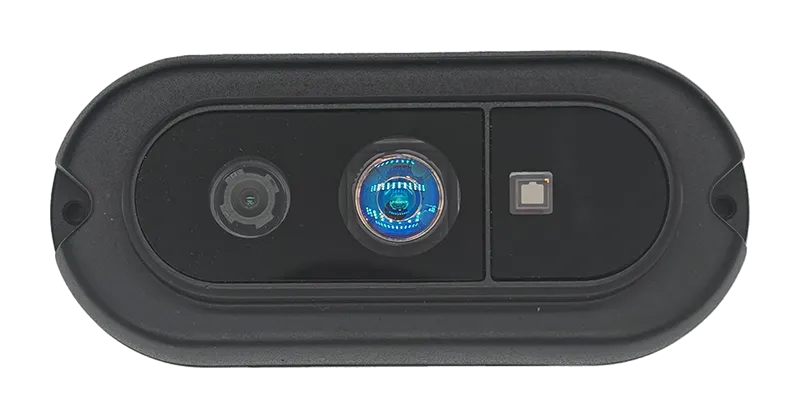

DM5005A
Resolution
320 × 240
Range
0.2-2 m / 0.3-5 m
Interface
USB 2.0 / UVC 1.2
Output
Point cloud / Depth / IR

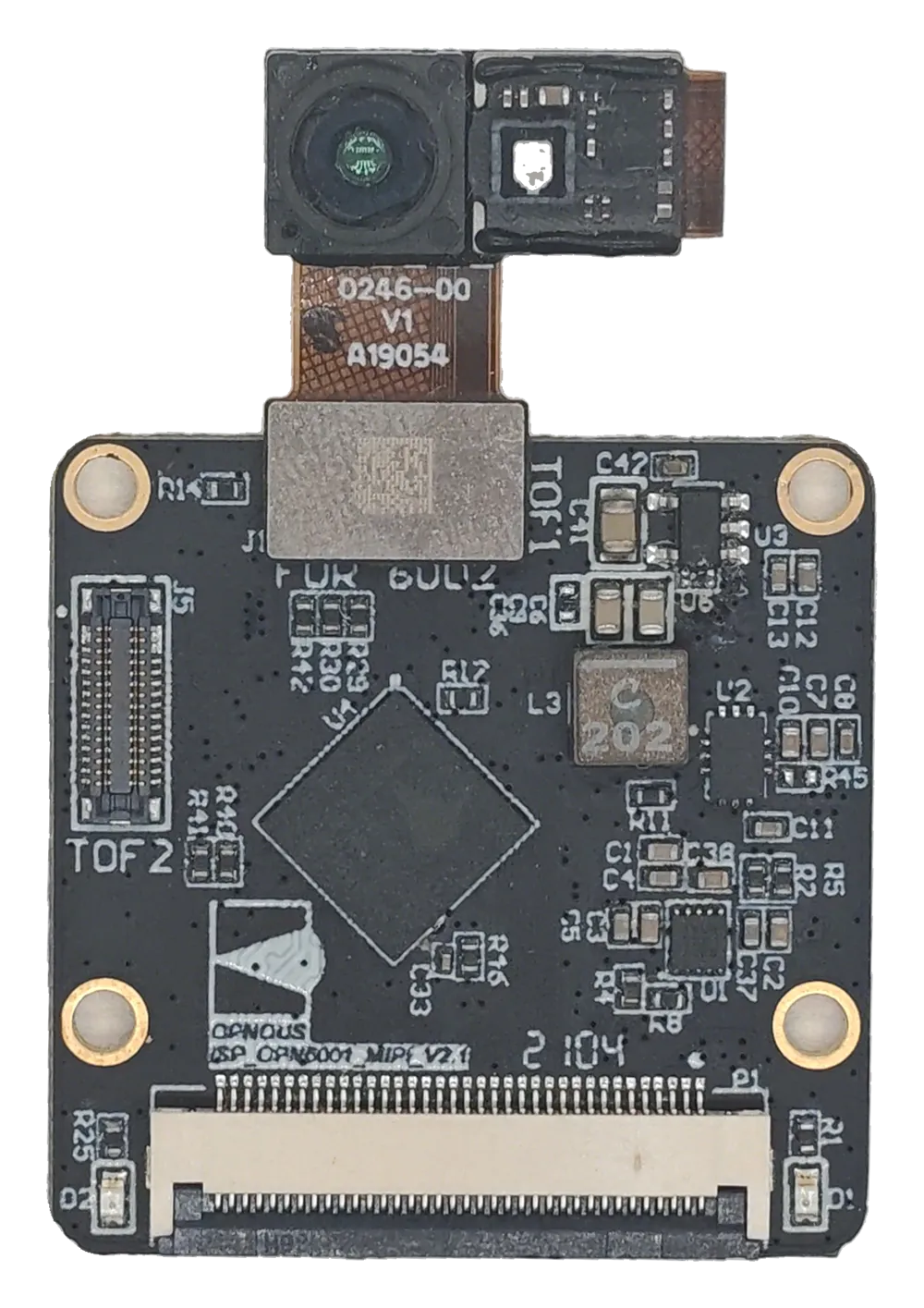

DMOM2501C
Resolution
100 × 100
Measurement Range
Up to 6 m
Depth Accuracy
≤ 1% or ≤ 1 cm
Data Interface
MIPI CSI-2, 2 lanes
DM-PS2601-VGA
Resolution
640 × 480 at 30 fps
Working Distance
0.3-5 m
Field of View
120° H × 90° V
Data Interface
Ethernet, TCP
DMOM2808D
Resolution
320 × 240
Range
0.25-4.5 m
Field of View
71.8° H × 56.5° V
Interface
MIPI CSI-2, 2 lanes
DMOM3006A
ToF Input
2-lane MIPI CSI-2 @ 600 Mbps
Host Output
4-lane MIPI CSI-2 TX @ 3.2 Gbps / DVP
Readout Data
14-bit Distance + 12-bit IR + 8-bit Ambient + 2-bit Flag
ISP Processing
ROI, 3×3 Spatial Filter, Calibration, HDR & Auto Exposure
DM-SV001F1
Recognition Speed
0.3 s (Cold Start)
Recognition Distance
0.4 m–1.0 m
Liveness Detection
TAR ≥ 98%
Face Comparison
TAR ≥ 98% @ FAR = 10⁻⁶
